cummins diesel power generator
Power Range: 20–3000 kW
Voltage: 220V–480V (customizable)
Speed(R.P.M):1500/1800
Frequency(HZ):50HZ/60HZ
Emissions: EPA Tier 4 Final/EU Stage V compliant
Noise Level: 65–75 dB(A) at 7 meters
Dimensions: Compact to industrial-scale designs
Phase:Single/Three phaseType:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
- Product Description
JLMECH：Your Trusted Cummins Diesel Power Generator Partner
Wuhan Jlmech Co., Ltd., a trusted Cummins diesel power generator partner, combines Cummins' engineering excellence with 25+ years of industry expertise. With ISO-certified production, global service networks, and tailored solutions for industries like healthcare, construction, and data centers, we deliver generators built for durability, fuel efficiency, and compliance.

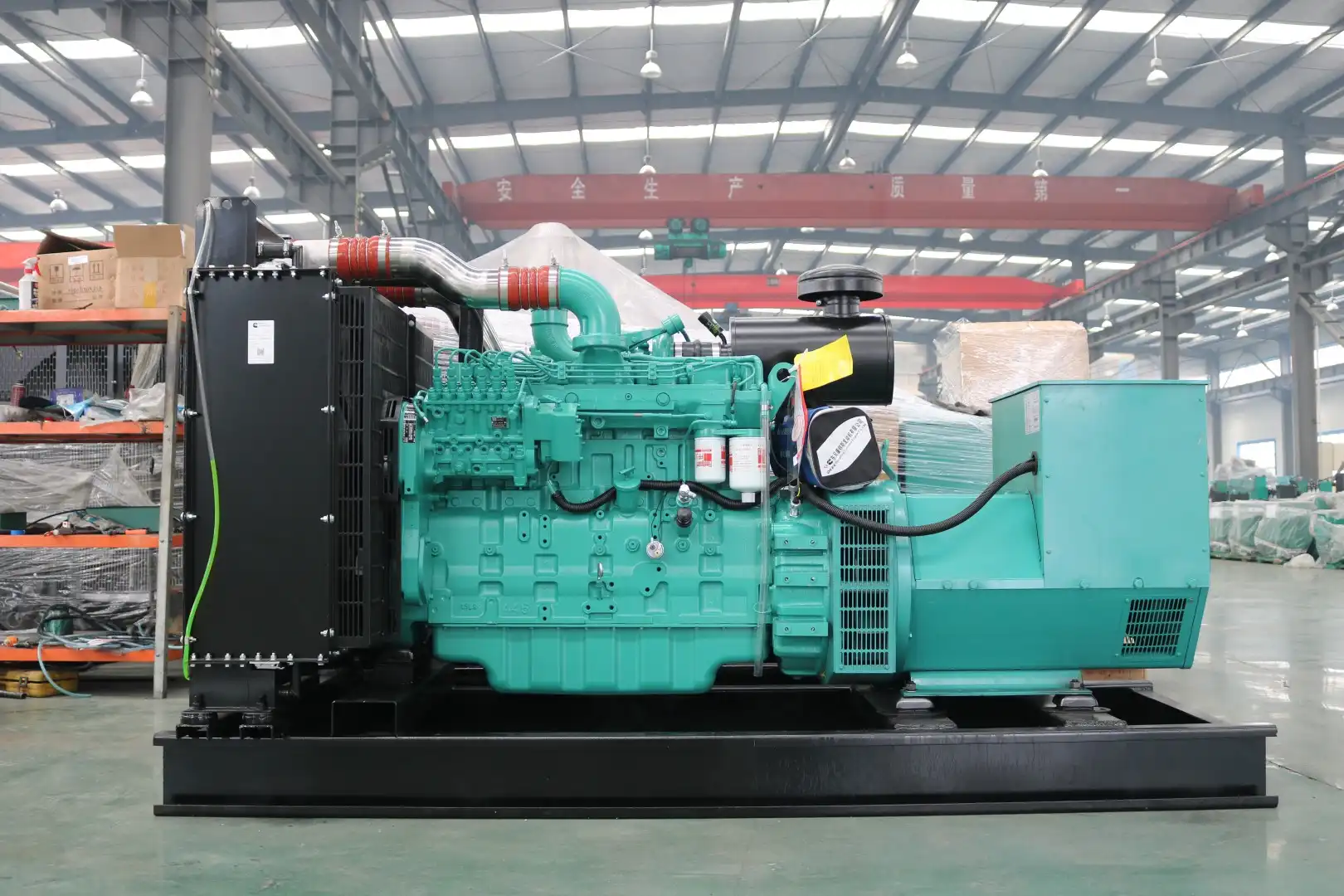

Cummins Diesel Power Generator Description
Our Cummins diesel power generator is engineered to provide uninterrupted power for critical operations. Designed with Tier 4 Final emissions technology, these generators ensure compliance with global environmental standards while maximizing fuel efficiency. Ideal for primary or backup power, they integrate seamlessly with industrial, commercial, and emergency systems
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-18DGF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
| JL-500GF | 500 | 625 | 900 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 206 | 3500*1380*1800 | 4000 |
| JL-600GF | 600 | 750 | 1080 | KT38-GA | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7000 |
| JL-700GF | 700 | 875 | 1260 | KTA38-G2B | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-800GF | 800 | 1000 | 1440 | KTA38-G2A | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-900GF | 9D0 | 1125 | 1620 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1800*2350 | 8200 |
| JL-1000GF | 1000 | 1250 | 1800 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1850*2350 | 8200 |
| JL-1100GF | 1100 | 1375 | 1980 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 205 | 5000*2040*2430 | 9500 |
| JL-1200GF | 1200 | 1500 | 2160 | KTA50-G8 | 16 | 159*159 | 50 | 204 | 205 | 5350*2110*2500 | 10000 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- OEM Expertise: As a certified partner for Cummins, Perkins, and MTU, we meet global quality benchmarks.
- End-to-End Support: 26 overseas offices in Africa and Southeast Asia ensure fast delivery and local technical assistance.
- Certified Quality: CE, ISO8528, and GB/T 2820-97 certifications guarantee reliability.
- 2-Year Warranty: Comprehensive coverage for mechanical and electrical components.
Packaging and Delivery
Cummins diesel power generators are crated in weatherproof, shock-resistant packaging. Global shipping via air, sea, or land.
Company Profile
With 3 R&D centers, 126 technical staff, and 11 branches across China, Wuhan Jlmech specializes in power solutions trusted by Cummins, MAN, and Liebherr.
Factory After-Sales Service
24/7 technical support, on-site maintenance, and spare parts availability.
Certification
ISO9001, ISO14001, CE, and GS-certified production.
Exhibitions
Regular participation in global energy and industrial trade shows.
FAQ
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on customization and quantity.
Q: Can I integrate this with solar/hybrid systems?
A: Yes! Our team designs hybrid power solutions.
Q: Do you comply with regional emissions laws?
A: Absolutely. We adapt generators to meet local standards.
Q: How do I request a warranty claim?
A: Contact our service team via email or local office for instant support.
