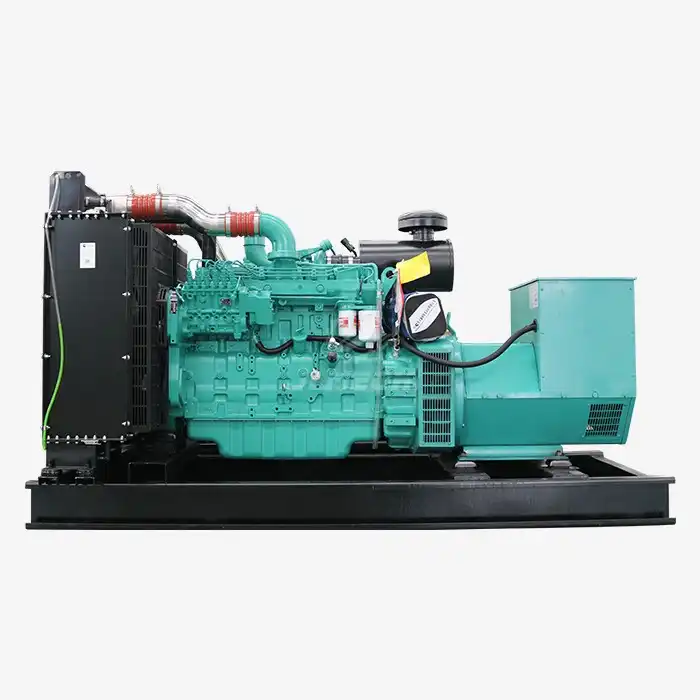

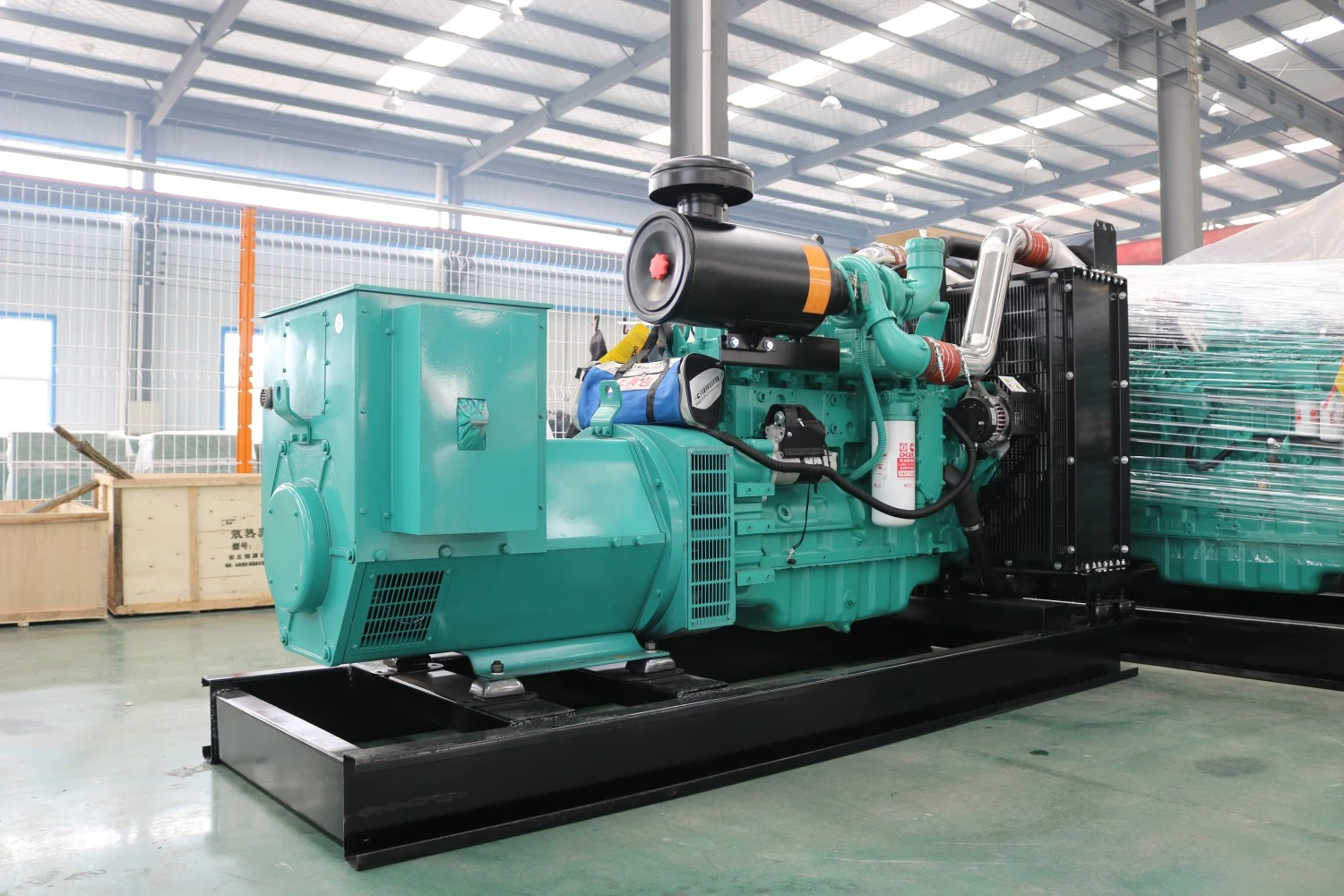

Remote start diesel unit
Rated AC Voltage(V):400/380
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: E/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Remote start diesel unit Manufacturer & Supplier
As a specialized manufacturer with advanced technological capabilities in power generation systems, we engineer remote start diesel units that bring unprecedented convenience and control to modern power management. Our engineering team designs each remote start diesel unit with integrated smart control technology, enabling users to initiate, monitor, and manage power generation from distant locations with reliable precision and operational safety.
Advanced Features of Our Remote Start Diesel Unit
Our remote start diesel unit incorporates multiple innovative technologies that deliver exceptional user experience and operational efficiency:
Multi-Mode Control System
Wireless remote control with 500-meter operational range
Mobile application connectivity for smartphone control
Key fob transmitter for convenient short-distance operation
Manual override function for local operation when needed
Intelligent Monitoring & Safety Protection
Real-time parameter monitoring including voltage, frequency, and fuel level
Automatic pre-start system self-check before ignition
Comprehensive safety interlocks preventing unauthorized operation
Immediate shutdown capability from remote locations
Enhanced User Convenience Features
Programmable automatic start/stop scheduling
System status feedback with visual and audible indicators
Battery status monitoring with low-voltage protection
Fuel level monitoring with automatic alert system
Reliability & Compatibility
Weather-resistant remote components suitable for harsh environments
Compatible with automatic transfer switches for seamless power transition
Fail-safe design with multiple backup control options
Encrypted signal transmission preventing interference
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G1 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-20GF | 20 | 25 | 36.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1620*710*1100 | 900 |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 26 overseas offices and 11 branches ensure localized support.
- OEM Experience: Trusted by Cummins, Doosan, and Liebherr for precision engineering.
- Advanced Facilities: Automated assembly lines and rigorous testing guarantee quality.
- Global Compliance: CE, ISO8528, and emission certifications simplify cross-border procurement.
Packaging and Delivery
Remote start diesel unit units are securely packed in weatherproof crates with anti-corrosion treatments. Delivery timelines: 15–25 days (standard orders) or customized per bulk requirements.
Company Profile
With 3 R&D hubs and 52 engineers, Wuhan Jlmech combines innovation with practicality. Our 26 overseas offices in Africa and Southeast Asia ensure seamless logistics and after-sales service.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and readily available spare parts.
Certification
ISO9001, ISO14001, CE, and GB/T 2820-97 certified.
Exhibitions
Regular exhibitors at global trade shows like Bauma and PowerGen.
FAQ
Q: Can the generator be customized for specific voltage requirements?
A: Yes! We tailor configurations to match regional grid standards.
Q: What's the lead time for 10+ units?
A: Bulk orders ship within 20 days with priority scheduling.
Q: Do you provide onsite installation support?
A: Our technicians offer global commissioning services.
Q: How does your pricing compare to solar hybrids?
A: We provide competitive upfront costs with lower lifetime maintenance expenses.
Power Your Projects with Confidence
Whether you're powering a mining site or securing backup for a data center, our Remote start diesel unit combines rugged reliability with cost-efficiency. Backed by Wuhan Jlmech's 29-year legacy, we're ready to support your energy needs.Contact Us Today: Email skala@whjlmech.com for quotes or technical queries. Let's keep your operations running smoothly!
