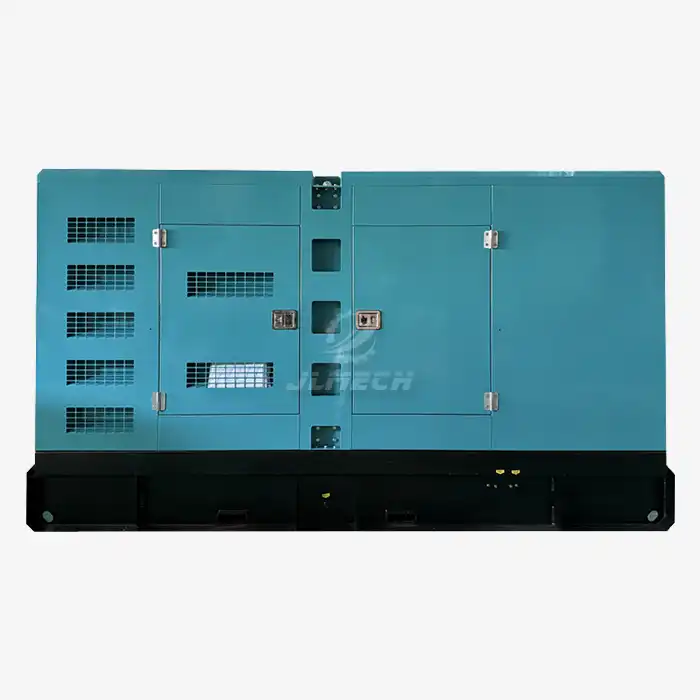

Outdoor application diesel generator
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Outdoor application diesel generator Manufacturer & Supplier
JLMECH Outdoor application diesel generator deliver robust, weather-resistant power for demanding environments like construction, agriculture, and remote operations, engineered to the ISO 8528 standard for stable performance where grid power is unavailable. Backed by 3 R&D centers, ISO certifications, and global partnerships (e.g., Cummins, Perkins), Wuhan Jlmech Co., Ltd. prioritizes fuel efficiency, durability, and compliance in these reliable backup power solutions built to excel in harsh conditions.
Outdoor application diesel generator Description
Designed for construction sites, hospitals, and remote operations, our Outdoor application diesel generator offers:
- Prime/Standby Power: Seamless switching for uninterrupted operations.
- Fuel Efficiency: 12.5 L/hr consumption at 75% load, reducing operational costs.
- Tier 4 Compliance: Meets global emission standards for eco-friendly performance.
- Low Noise: <75 dB(A) operation, ideal for urban or noise-sensitive areas.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-18DGF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 52 engineers ensure cutting-edge design and rigorous testing.
- Global Support: 26 overseas offices in Africa/Asia for rapid service.
- Scalable Solutions: Customizable configurations for parallel operation.
- 2-Year Warranty: Covers mechanical and electrical components.
Packaging and Delivery
Outdoor application diesel generator are shipped in weatherproof, anti-corrosion packaging. Bulk orders receive priority logistics with real-time tracking.
Company Profile – Leaders in Power Solutions
With 11 branches in China and 126 technical staff, Wuhan Jlmech combines advanced facilities (automated coating/testing lines) with global OEM experience.
Factory After-Sales Service
Our 24/7 support team provides on-site maintenance, spare parts, and operator training within 48 hours of inquiry.
Certification and Compliance
CE, ISO8528, and GB/T 2820-97 certified. Our ISO14001-certified factory ensures eco-conscious manufacturing.
Exhibitions
We showcase innovations at POWERGEN Africa and Middle East Energy, connecting with industry leaders.
FAQ
Q: Can this generator run in extreme temperatures?
A: Yes! It operates flawlessly from -15°C to 50°C.
Q: Do you offer hybrid solar-diesel configurations?
A: Custom solutions are available for hybrid energy needs.
Q: How quickly can you deploy units?
A: Bulk orders ship in 10–15 days with express customs clearance.
Q: Are your generators compatible with smart monitoring systems?
A: Yes – remote monitoring via IoT integration is optional.
Ready to Secure Uninterrupted Power?
Email skala@whjlmech.com for a free Outdoor application diesel generator quote or customized bulk procurement plan.
