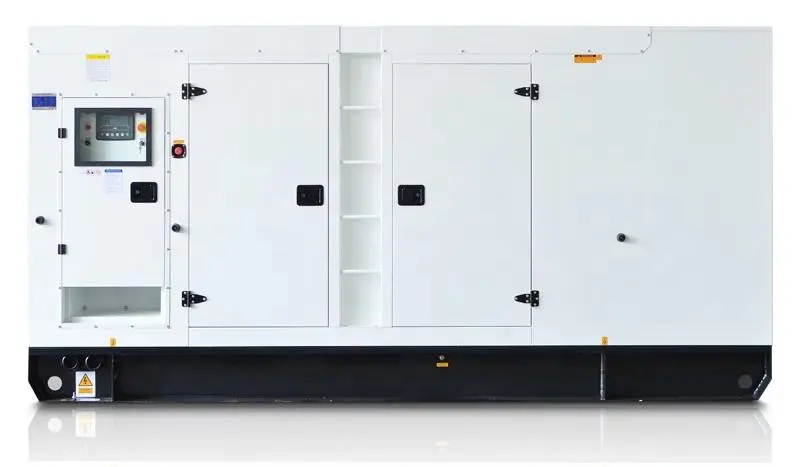

Optionas Remote Control System Silent Diesel Generator
Voltage: 220V–480V (customizable)
Speed(R.P.M):1500/1800
Frequency(HZ):50HZ/60HZ
Noise Level: 65–75 dB(A) at 7 meters
Dimensions: Compact to industrial-scale designs
Phase:Single/Three phaseType:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling System: Radiator-based or closed-loop
Starting Method:Electric starting
Customization: OEM/ODM
Certifications: CE, ISO8528, GB/T 2820-97
- Product Description
JLMECH：Your Trusted Optionas Remote Control System Silent Diesel Generator Partner
Our factory specializes in manufacturing high-end generator sets. What we produce is a high-end power generation equipment that integrates silence and intelligent technology, aiming to provide you with unprecedented control convenience and excellent user experience. This Optional Remote Control System Silent Diesel Generator is the perfect embodiment of this concept.
Optionas Remote Control System Silent Diesel Generator Description
Extremely convenient intelligent control. The system supports remote operation and real-time monitoring. Users can start/stop the generator, set parameters and track the operation status through intelligent terminal devices, which greatly improves the operational flexibility and response efficiency. Meanwhile, the intelligent control unit is equipped with fault self-diagnosis and early warning functions, which effectively avoids sudden shutdown and ensures the continuity of power supply.
Quiet and worry-free operation experience. The generator adopts an efficient sound insulation structure and low-vibration design, combined with multi-stage muffling technology, so that it maintains an extremely low noise level during operation. It is suitable for places with strict requirements on silence, such as residential areas, medical facilities or office environments. At the same time, it ensures compliance with environmental protection emission standards, taking into account both performance and sustainability.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-18DGF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
| JL-500GF | 500 | 625 | 900 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 206 | 3500*1380*1800 | 4000 |
| JL-600GF | 600 | 750 | 1080 | KT38-GA | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7000 |
| JL-700GF | 700 | 875 | 1260 | KTA38-G2B | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-800GF | 800 | 1000 | 1440 | KTA38-G2A | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-900GF | 9D0 | 1125 | 1620 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1800*2350 | 8200 |
| JL-1000GF | 1000 | 1250 | 1800 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1850*2350 | 8200 |
| JL-1100GF | 1100 | 1375 | 1980 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 205 | 5000*2040*2430 | 9500 |
| JL-1200GF | 1200 | 1500 | 2160 | KTA50-G8 | 16 | 159*159 | 50 | 204 | 205 | 5350*2110*2500 | 10000 |
The rotational speed in the above Optionas Remote Control system Silent Diesel Generator technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- OEM Expertise: As an authorized partner for Cummins, we adhere to strict quality protocols.
- Custom Solutions: Tailor voltage, fuel efficiency, and control systems to your project.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid technical assistance.
- Cost Efficiency: Optimized TCO (total cost of ownership) through energy-saving designs and extended service intervals.
Packaging and Delivery
Units are securely packaged in weatherproof crates with anti-corrosion treatments. Global shipping via sea/air freight available.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches across China and employs 126 technical experts, including 27 senior engineers. Our 35,000m² facility features automated assembly lines and rigorous testing systems, ensuring every Optionas Remote Control System Silent Diesel Generator meets international standards.
Factory After-Sales Service
Enjoy 24/7 technical support, a 2-year warranty, and guaranteed 48-hour spare parts delivery worldwide.
Certification
ISO9001, ISO14001, CE, and GS-certified manufacturing processes.
Exhibitions
We showcase innovations at PowerGen International, Middle East Energy, and regional trade shows.
FAQ
Q: Can I request a generator customized for high-altitude operations?
A: Yes! Our engineers adjust air-fuel ratios and cooling systems for performance at elevations up to 4,500 meters.
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on specifications. Urgent orders prioritized.
Q: Do you offer financing options?
A: Flexible payment terms and leasing plans are available for large-scale procurement.
Q: Are your generators compatible with hybrid solar-diesel setups?
A: Absolutely. We design units to integrate with renewable energy systems.
Q: How do you ensure compliance with local emissions laws?
A: Each Optionas Remote Control system Silent Diesel Generator is pre-tested for regional regulatory alignment.
Power Your Projects with Confidence
Whether you're managing a mining operation in Africa or a data center in Southeast Asia, our Optionas Remote Control System Silent Diesel Generator guarantees reliability. Contact us at skala@whjlmech.com to discuss your requirements or request a free quote.
