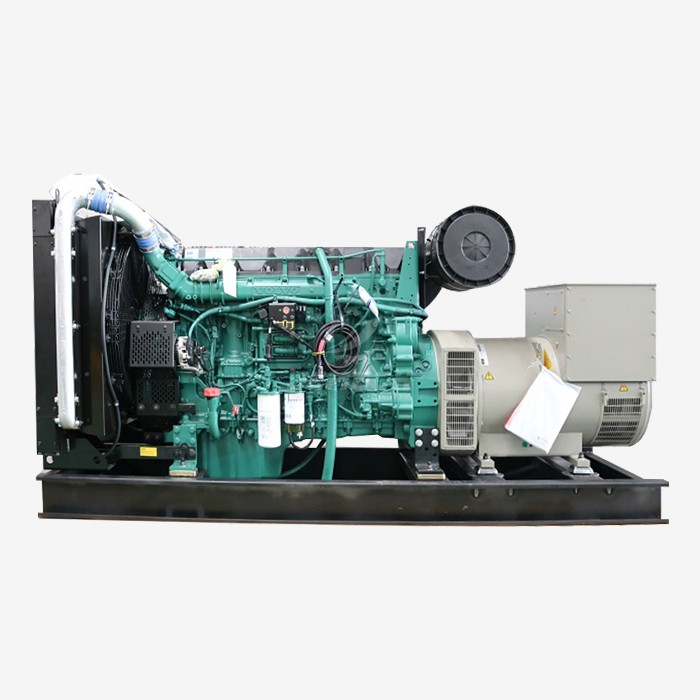

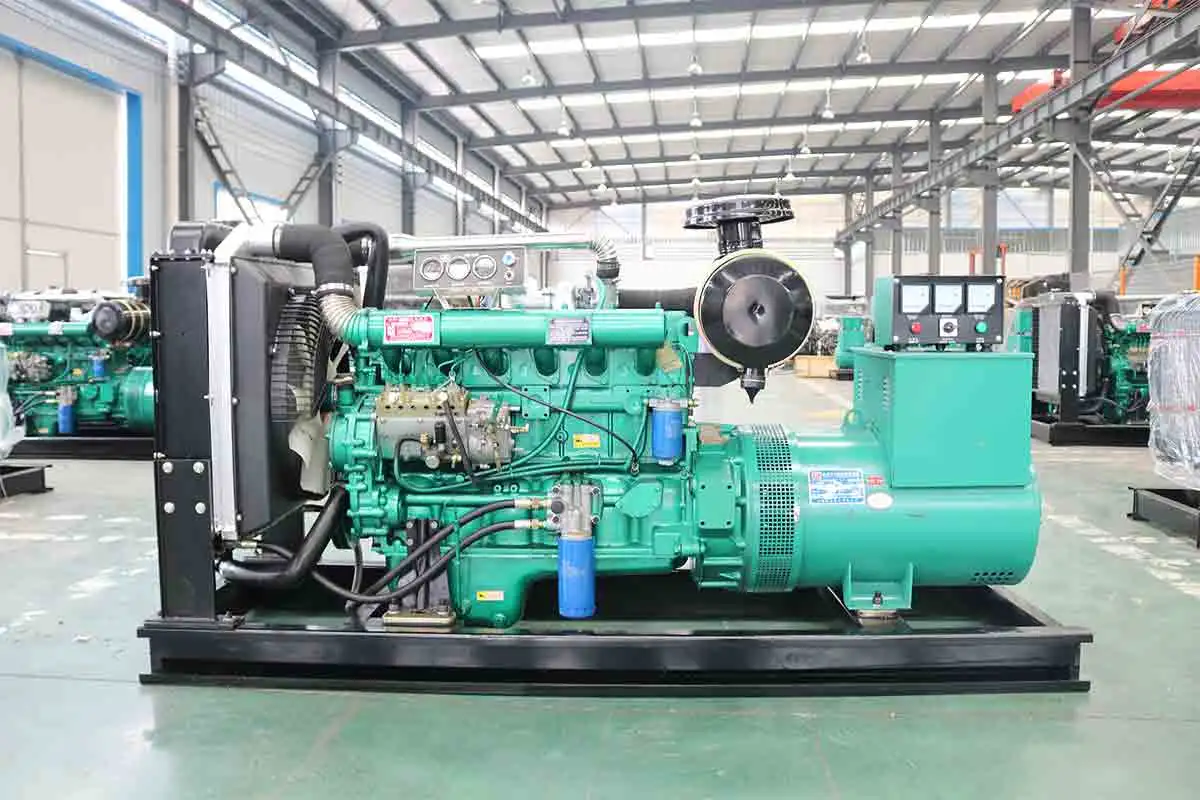

Three phase four wire diesel generator
Engine Type: 4-stroke, water-cooled diesel
Fuel Tank Capacity: 200L (24+ hours continuous operation)
Voltage Range: 220/380V, 3-phase
Dimensions: 2640 x 730 x 1200mm (trailer-mounted options available)
Certifications: CE, ISO8528, GB/T 2820-97
- Product Description
JLMECH：Your Trusted Three phase four wire diesel generator Manufacturer & Supplier
At JLMECH, we are a leader in power generation technology. With years of dedicated engineering design and excellent manufacturing craftsmanship, we specialize in producing Three phase four wire diesel generator, setting industry benchmarks for reliability, efficiency, and performance worldwide. We are well aware that reliable backup and prime power solutions are crucial for industrial sectors around the globe. Our commitment goes beyond the manufacturing process; we also provide comprehensive support to ensure seamless integration and optimal operation of your power equipment. Choose to cooperate with JLMECH to obtain generator products that combine durability and outstanding performance.
Three phase four wire diesel generator Description
Engineered for high-efficiency industrial use, JLMECH’s Three phase four wire diesel generator provides stable 400V/230V output through its unique L1-L2-L3-N configuration. Key features include:
- Advanced Voltage Regulation : ±1% fluctuation control via AVR systems
- 4-Pole Synchronous Alternator : Enabling 1500 RPM operation at 50Hz
- Neutral Grounding Protection : Eliminates voltage imbalances
- IP23 Protection Rating : Resists dust/moisture in harsh environments
- Parallel Operation Ready : Scalable for multi-unit power farms
- Ideal for manufacturing plants, hospitals, and telecom infrastructures requiring balanced load distribution.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore × Stroke (mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The Ricardo series diesel generator sets of JLMECH adopt the diesel engines of series 100, 105, 110 and 126. They are of four-stroke, water-cooled and in-line type, and possess good power performance and economic efficiency.
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Global Expertise: 52 engineers and 27 senior engineers ensure cutting-edge performance.
- Proven Reliability: Trusted by Fortune 500 companies for mission-critical operations.
- Custom Solutions: Weatherproof enclosures, remote monitoring, and IoT integration.
- Sustainability Focus: Meets EU Stage V emissions standards for eco-friendly operation.
Packaging and Delivery
Three phase four wire diesel generator is crated in anti-corrosion steel frames and shipped globally via air, sea, or land.
Company Profile
With 11 branches in China and 26 overseas offices, Wuhan Jlmech serves clients in Africa, Southeast Asia, and beyond.
Factory After-Sales Service
24/7 technical support, on-site maintenance, and spare parts availability.
Certification
ISO9001, ISO14001, and CE-certified production processes.
Exhibitions
FAQ
Q: Can this generator support parallel operation for higher capacity?
A: Yes, it's designed for seamless synchronization with multiple units.
Q: Do you offer bulk procurement discounts?
A: Absolutely! Contact us at skala@whjlmech.com for tailored pricing.
Q: What's the lead time for 20 units?
A: Standard orders ship in 4–6 weeks; expedited options available.
Q: Is remote monitoring included?
A: Optional IoT modules provide real-time diagnostics via mobile/desktop.
Contact Us
Whether you're a hospital safeguarding lives or a construction firm powering remote sites, our Three phase four wire diesel generator diesel power generator guarantees uninterrupted performance. Backed by Wuhan Jlmech's 20+ years of engineering excellence, it's the smart choice for businesses prioritizing reliability and ROI.Email skala@whjlmech.com to discuss your project needs or request a customized quote. Let's keep your operations running smoothly!
