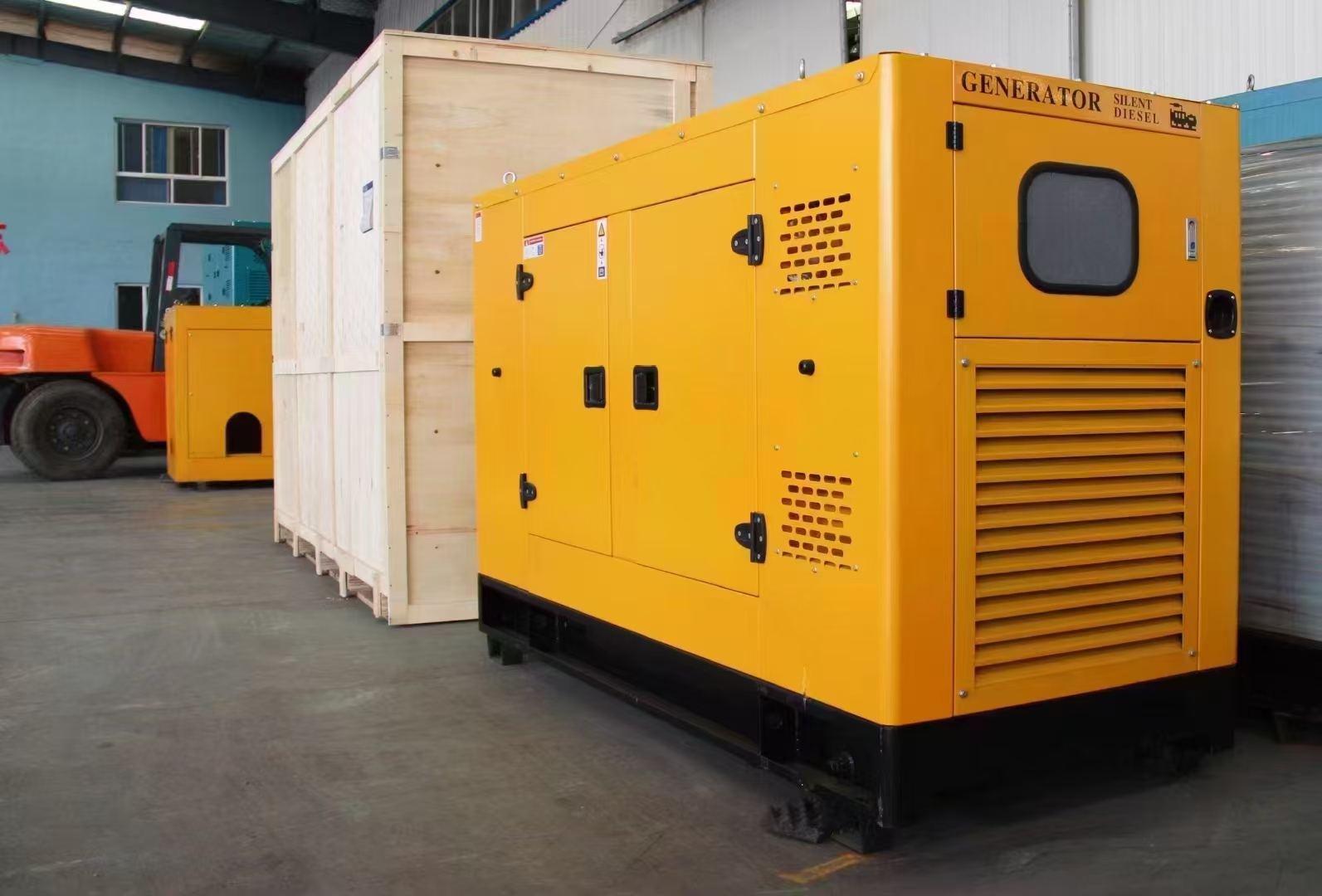

50KW 60Hz 220V diesel generator
Engine: 4-Cycle, Water-Cooled Diesel
Fuel Consumption: 12.5L/hr @ 75% Load
Noise Level: ≤72 dB(A) at 7 Meters
Voltage: 220/380V, 50Hz (Customizable)
Dimensions: 1750×730×1200mm | Weight: 750kg
Compliance: CE, ISO8528, Tier 4 Emissions
- Product Description
JLMECH-Your Trusted 50KW 60Hz 220V diesel generator Manufacturer & Supplier
For industries demanding reliable backup or primary power, Wuhan Jlmech Co., Ltd. designs 50KW 60Hz 220V diesel generator that combine rugged durability with fuel efficiency. With 3 R&D centers, 126+ technical experts, and 26 overseas offices, we deliver globally compliant solutions trusted by Cummins, Perkins, and other leading brands.
50KW 60Hz 220V diesel generator Description

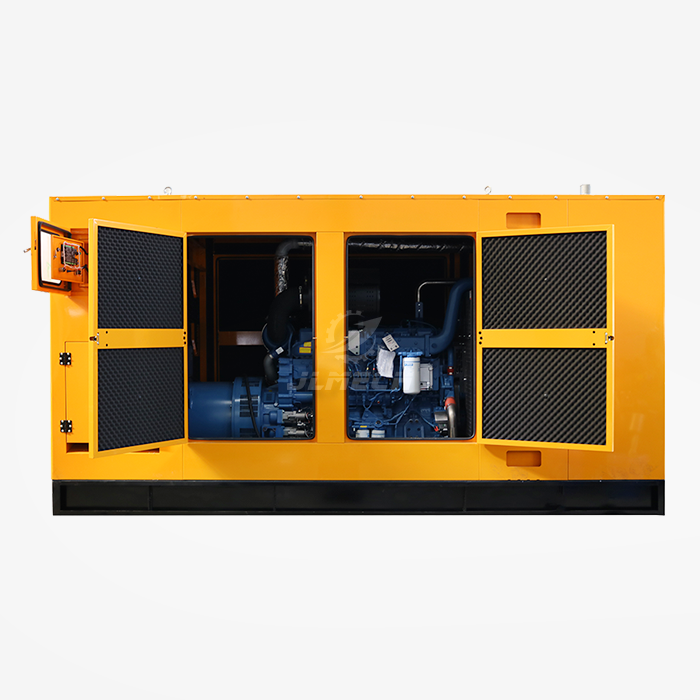

Our 50KW 60Hz 220V diesel generator is engineered for industries like construction, telecom, and healthcare where downtime is costly. Featuring a high-performance engine, advanced cooling system, and noise-reduction technology, it ensures 24/7 operation in harsh environments. The compact design allows easy integration into existing setups, while smart controls enable real-time monitoring of fuel levels and output.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore × Stroke (mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 60Hz | 100*115 | 1800rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 60Hz | 100*115 | 1800rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 60Hz | 105*125 | 1800rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 60Hz | 105*125 | 1800rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 60Hz | 105*130 | 1800rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 60Hz | 105'130 | 1800rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 60Hz | 105*135 | 1800rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 60Hz | 105*135 | 1800rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 60Hz | 110*135 | 1800rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 60Hz | 126*130 | 1800rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 60Hz | 126*130 | 1800rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 60Hz | 126*130 | 1800rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 60Hz | 126*155 | 1800rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 60Hz | 126*155 | 1800rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 60Hz | 127*165 | 1800rpm | 6 | 340*110*180 | 2400kg |
The rotational speed in the above Ricardo generator set technical parameters is 1800 RPM, the frequency is 60 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire.
Why Choose US?
- Proven Durability: Reinforced steel frame and corrosion-resistant coating withstand extreme temperatures and humidity.
- Fuel Efficiency: Optimized combustion technology reduces operating costs by up to 18% compared to standard models.
- Global Support: 26 overseas offices provide rapid spare parts delivery and onsite troubleshooting.
- Custom Solutions: Tailor voltage, fuel tank size, or control panels to match regional regulations or project needs.
Packaging and Delivery
50KW 60Hz 220V diesel generator are crated in anti-rust-treated wooden frames with shock-absorbent padding. Sea/air freight options available.
Company Profile – Powering Industries Since 1996
Wuhan Jlmech specializes in diesel generators for sectors requiring mission-critical uptime. With 52 engineers and ISO 9001-certified production lines, we've supplied 15,000+ units to 60+ countries.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and optional maintenance contracts.
Certification
CE, ISO8528, ISO9001, and ISO14001 certified.
Exhibitions
Meet us at POWERGEN Asia and Middle East Energy.
FAQ
Q: What's the lead time for bulk orders?
A: 15–25 days for 10+ units, depending on customization.
Q: Can it integrate with solar/hybrid systems?
A: Yes – discuss your requirements with our engineering team.
Q: Is onsite installation support available?
A: We provide global technician dispatch for complex projects.
Q: What payment terms do you offer?
A: 30% deposit, 70% before shipment. LC/TT accepted.
Need a Reliable Generator?
Email skala@whjlmech.com for 50KW 60Hz 220V diesel generator quote. Let's keep your operations running, rain or shine.
