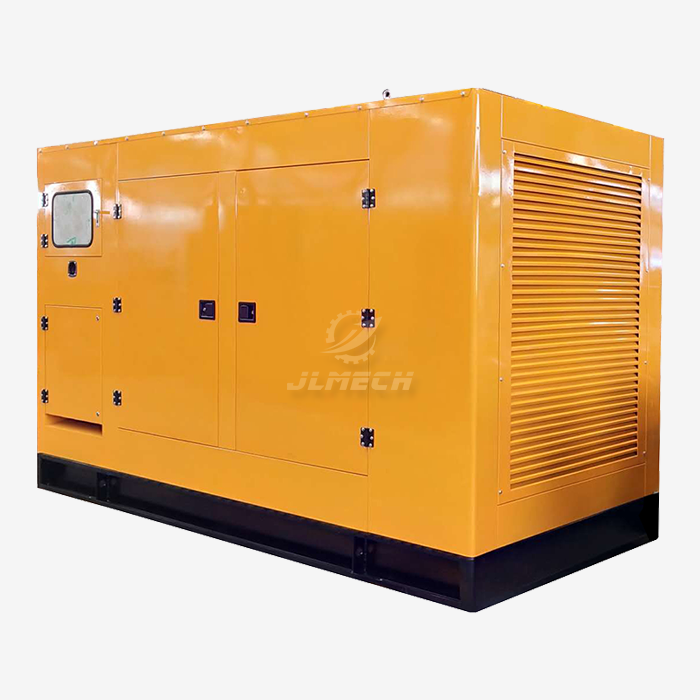

100KW 50Hz 220V diesel generator

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V/400V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Fuel Efficiency: Up to 30% savings with smart load optimization.
Noise Levels: As low as 65 dB(A) with soundproof enclosures.
Compliance: CE, ISO8528, GB/T 2820-97
Optional Features: Remote monitoring, auto-start/stop, and trailer/container mounting.

Product Description

100KW 50Hz 220V Diesel Generator

For over 29 years, Wuhan Jlmech has specialized in designing durable, fuel-efficient 100KW 50Hz 220V diesel generator for industries worldwide. With 3 R&D centers, 126 technical experts, and ISO9001-certified manufacturing, we deliver CE/GS-compliant generators trusted by Cummins, Perkins, and other global brands.Diesel Power Generator Set Description

Our 100KW 50Hz 220V diesel generator are engineered for reliability in demanding environments. Whether you need backup power for hospitals, primary energy for mining operations, or hybrid-ready solutions, our units combine high fuel efficiency, low noise levels (65-75 dB), and compliance with ISO8528 and Tier 4 emissions standards.

Applications

Emergency power for data centers, hospitals, and telecom towers.
Primary energy for off-grid construction sites and agricultural operations.
Hybrid systems integrating solar/wind energy for sustainable power.

100KW 50Hz 220V diesel generator

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	1050kg
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg
JL-200GF	6126ZLD	206kW	360A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1800kg
JL-250GF	6126ZLD1	256kW	450A	400V/230V	50Hz	126*130	1500rpm		6	290*95'150	1800kg
JL-300GF	6126ZLD2	308kW	540A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1900kg
JL-300GF	618ZLD	338kW	540A	400V/230V	50Hz	126*155	1500rpm		6	300100180	2000kg
JL-400GF	6126ZLD3	408kW	720A	400V/230V	50Hz	126*155	1500rpm		6	300*110"160	2000kg
JL-500GF	6126ZLD4	508kW	900A	400V/230V	50Hz	127*165	1500rpm		6	340110180	2400kg

The rotational speed in the above Ricard generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose Us?

Proven Expertise: 52 engineers ensure cutting-edge performance and customization.
Global Support: 26 overseas offices in Africa/Asia provide rapid spare parts and maintenance.
Warranty: 2-year coverage for mechanical/electrical components.
OEM-Ready: Custom branding for bulk buyers and distributors.

Packaging and Delivery

Generator packaging

All units are securely crated with weather-resistant materials and shipped globally via trusted logistics partners.

Company Profile

Generator factory

With 11 branches in China and 3 R&D centers, we serve clients in 50+ countries, prioritizing innovation and sustainability.

Factory After-Sales Service

24/7 technical support, on-site maintenance, and extended warranty options.

Certification

Certificate

ISO9001, ISO14001, CE, GS, and OEM approvals from Cummins, Perkins, and MTU.

Exhibitions

Exhibition

Meet us at POWERGEN Asia and Middle East Energy to explore live demos.

FAQ

Q: What's the lead time for bulk orders?
A: Standard orders ship in 15-30 days, with expedited options available.

Q: Do you provide financing?
A: Flexible payment terms and leasing plans are available for large projects.

Need a Reliable Power Partner?

Whether you're upgrading infrastructure or securing backup energy, our 100KW 50Hz 220V diesel generator offer unmatched durability and value. Contact us at skala@whjlmech.com to discuss your project.
