weichai diesel generator 33kva

Brand:Weichai
AC Output(KW):26.4KW/33KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three phase
Type:Silent/Open Frame
Engine Type:4/6/12 cylinder
Cooling Method: Water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Weichai Diesel Generator 33kVA Partner

Wuhan Jlmech Co., Ltd. is a trusted Weichai diesel generator 33kVA supplier, combining advanced engineering with global expertise. With 3 R&D centers, 126 technical experts, and 26 overseas offices, we deliver durable, fuel-efficient generators backed by a 2-year warranty. Our CE, ISO, and GB/T certifications ensure compliance, while our OEM partnerships with Cummins, Perkins, and MTU reflect unmatched quality.

weichai diesel generator 33kva

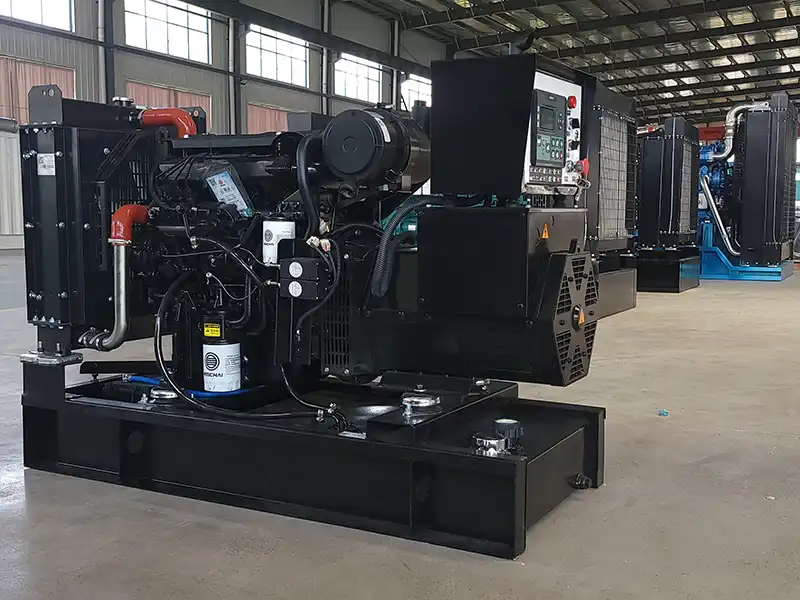

Weichai Diesel Generator 33kVA Description

The Weichai diesel generator 33kVA is engineered to provide uninterrupted power in remote construction sites, mining operations, hospitals, and telecom projects. Its compact design, noise-reduction technology, and Weichai-powered engine ensure reliable performance in extreme temperatures (-20°C to 50°C). Ideal for regions with unstable grids, this generator meets Euro III emissions standards, making it eco-friendly and cost-effective.

weichai diesel generator

Specifications

Model	Power	Power	Current	Engine model	Cylinder	Bore*Stroke	Displacement	Lube oil	Consumption	Size	Weight
Model	KW	KVA	A	Engine model	Cylinder	mm	L	L	g/kw.h	mm	KG
JL-20GF	20	25	36	WP2.3D25E200	4	89*92	2.289	8	224	18009001270	755
JL-30GF	30	37.5	54	WP2.3D33E200	4	89*92	2.289	8	212	18009001300	800
JL-36GF	36	45	65	WP2.3D40E200	4	89*92	2.289	8	216	18009001300	800
JL-40GF	40	50	72	WP2.3D48E200	4	89*92	2.3	8	220	18009001300	800
JL-60GF	60	75	108	WP4D66E200	4	105*130	4.5	10	208	19509201340	1100
JL-60GF	60	75	108	WP4.1D66E200	4	105*118	4.087	13	235	19509201340	1100
JL-70GF	70	87.5	126	WP4.1D80E200	4	105*118	4.087	13	235	18507001200	1000
JL-80GF	80	100	144	WP4.1D100E200	4	105*130	4.5	10	203	22008001340	1250
JL-90GF	90	112.5	162	WP4D100E200	4	105*118	4.5	13	201	22008001340	1250
JL-90GF	90	112.5	162	WP4D108E200	4	105*130	4.5	10	205	22008201340	1250
JL-120GF	120	150	216	WP60132E200	6	105*130	6.75	18	205	24708301450	1350
JL-132GF	132	165	238	WP6D152E200	6	105*130	6.75	18	205	24709301450	1400
JL-150GF	150	87.5	270	WP60167E200	6	105*130	6.75	18	201	25509501300	1430
JL-180GF	180	225	324	WP10D200E200	6	126*130	9.726	24	215	275010501400	1880
JL-200GF	200	250	360	WP10D238E200	6	126*130	9.726	24	215	275010501500	2100
JL-220GF	220	275	396	WP10D264E200	6	126*130	9.726	24	215	290011001550	2200
JL-280GF	280	350	504	WP10D320E200	6	126*130	9.726	24	210	290011001800	2200
JL-280GF	280	350	504	WP12D317E200	6	125*155	11.596	24	210	290012001800	2300
JL-350GF	350	437.5	630	WP13D385E200	6	127*165	12.54	36	210	300010001850	2500
JL-350GF	350	437.5	630	WP13D405E200	6	127*165	12.54	36	200	300010001850	2600
JL-400GF	400	500	720	6M26D447E200	6	150*150	15.9	52	197	350015001800	4000
JL-440GF	440	550	792	6M26D484E200	6	150*150	15.9	52	210	350015001800	4100
JL-500GF	500	625	900	6M33D572E200	6	150*185	19.6	61	210	360015001850	5000
JL-550GF	550	687.5	990	6M33D633E200	6	150*185	19.6	61	210	360015001900	5500
JL-600GF	600	750	1080	6M33D670E200	6	150*185	19.6	61	210	365015001900	6000
JL-640GF	640	800	1152	12M26D748E200	12	150*150	31.8	109	210	435017002100	7400
JL-700GF	700	875	1260	12M26D792E200	12	150*150	31.8	109	210	450018002200	7800
JL-800GF	800	1000	1440	12M260902E200	12	150*150	31.8	109	210	450018502200	8000
JL-880GF	880	1100	1584	12M26D968E200	12	150*150	31.8	109	210	460019002300	8400
JL-1000GF	1000	1250	1800	12M33D1108E200	12	150*185	39.2	155	210	480020002350	9200
JL-1100GF	1100	1375	1980	12M33D1210E200	12	150*185	39.2	155	210	480020002350	9300
JL-1200GF	1200	1500	2160	12M33D1320E200	12	150*185	39.2	155	210	480020502450	9800
JL-400GF	400	500	720	WP13D440E310	6	127*165	12.54	36	205	300010001850	2600
JL-500GF	500	625	900	6M33D572E310	6	150*185	19.6	61	210	360015001850	5000
JL-550GF	550	687.5	990	6M33D633E310	6	150*185	19.6	61	205	360015001900	5500
JL-640GF	640	800	1152	6M33D725E310	6	150*185	19.6	61	197	365015001900	6200
JL-900GF	900	1125	1620	12M33D968E310	12	150*185	39.2	146	197	460019002300	8400
JL-1000GF	1000	1250	1800	12M33D1108E310	12	150*185	39.2	146	199	480020002350	9200
JL-1100GF	1100	1375	1980	12M33D1240E310	12	150*185	392	146	200	480020002350	9300
JL-1200GF	1200	1500	2160	12M33D1320E310	12	150*185	39.2	146	200	480020502450	9800
JL-1320GF	1320	1650	2376	16M33D1530E310	16	150*185	52.3	171	214	5200*25002700	11000
JL-1400GF	1400	1750	2520	16M33D1580E310	16	150*185	52.3	171	215	520025002700	11600
JL-1500GF	1500	1875	2700	16M33D1680E310	16	150*185	52.3	171	216	520025002700	11900
JL-1600GF	1600	2000	2880	16M33D1800E310	16	150*185	52.3	171	205	520025002700	12300
JL-1600GF	1600	2000	2880	12M55D1870E310	12	180*215	65.65	480	198	610023502800	16600
JL-1800GF	1800	2250	3240	12M55D2020E310	12	180*215	65.65	480	199	610023502800	16900
JL-2000GF	2000	2500	3600	12M55D2210E310	12	180*215	65.65	480	202	610023502800	17200
JL-2200GF	2200	2750	3960	12M55D2450E310	12	180*215	65.65	480	203	610023502800	17500

The Weichai series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.

The Weichai diesel generator set meets the second-stage emission standard for non-road vehicles in China. By adopting the pre-injection combustion technology, the particulate matter emissions are reduced by 30%. For the Weichai diesel generator set, key components such as the crankshaft and connecting rod are made of forged steel, with a designed service life of 20,000 hours. It is equipped with a four-protection system as standard, with a protection level of IP23 and an insulation class of H, which can effectively protect the safe operation of the generator set.

Why Choose US?

Proven Durability: Tested for 500+ hours under harsh conditions.
Fuel Efficiency: Optimized combustion reduces operational costs by 15%.
Global Support: 26 overseas offices in Africa and Southeast Asia ensure fast spare parts delivery.
Compliance Ready: CE, ISO8528, and GB/T 2820-97 certified.

Packaging and Delivery

Generator packaging

Each Weichai diesel generator 33kVA is shipped in anti-corrosion wooden crates with shock-absorbent materials. We offer FOB, CIF, or EXW terms, with delivery in 15–25 days post-order.

Company Profile

Generator factory

Wuhan Jlmech Co., Ltd. operates 11 branches across China and serves as an OEM partner for Cummins, Perkins, and MTU. Our automated assembly lines and 52-engineer team guarantee precision in every unit.

Factory After-Sales Service

Enjoy a 2-year warranty, 24/7 technical support, and on-site maintenance training.

Certification

Certificate

Our generators comply with CE, ISO9001, ISO14001, and GB/T standards.

Exhibitions

Exhibition

We showcase innovations at global trade shows like Canton Fair and Bauma China.

FAQ

Q: Can this generator integrate with solar hybrid systems?
A: Yes, we offer customizable hybrid solutions.

Q: Do you provide emissions compliance documentation?
A: Absolutely—Euro III certificates are included.

Q: What payment terms do you accept?
A: We support LC, TT, and flexible installment options.

Need a Reliable Power Partner?

The Weichai diesel generator 33kVA is your solution for critical operations. Contact us at skala@whjlmech.com to discuss bulk pricing or custom requirements. With Wuhan Jlmech, you gain a partner committed to quality, reliability, and your long-term success.
