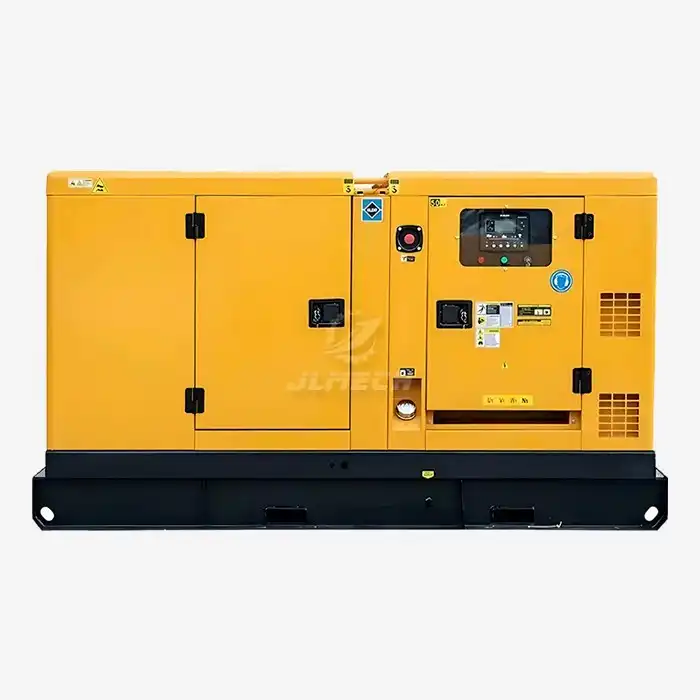

220kW diesel unit
Rated AC Voltage(V):230V/400V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Six cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH: Your Trusted 220kW diesel unit Manufacturer & Supplier
As a specialized manufacturer with extensive expertise in power generation systems, we provide reliable 220kW diesel unit engineered to meet diverse industrial requirements. Our technical team excels in configuring 220kW diesel units that precisely match client specifications, delivering optimal performance for manufacturing plants, commercial facilities, and critical infrastructure applications where power stability is essential.
Technical Advantages of Our 220kW Diesel Unit
Enhanced Efficiency Design
Advanced fuel injection system optimizing consumption (~205g/kWh)
Intelligent cooling system maintaining optimal operating temperature
High-efficiency alternator with Class H insulation
Robust Construction
Industrial-grade engine components for extended service life
Corrosion-resistant treatments for harsh environments
Heavy-duty base frame with vibration isolation
Smart Control Features
Digital control panel with multi-language interface
Comprehensive protection and monitoring systems
Remote operation and automatic transfer switch compatibility
Adaptive Configuration
Flexible installation options for various space constraints
Sound-attenuated enclosure (70-78 dBA) for noise-sensitive areas
Compliance with international emission standards
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-250GF | 250 | 312.5 | 450 | NTA855-G1A | 6 | 140*152 | 14 | 38 | 207 | 3100*1050*1700 | 2600 |
| JL-280GF | 280 | 350 | 504 | MTAA11-G3 | 6 | 125*147 | 11 | 38 | 210 | 3100*1050*1700 | 2700 |
| JL-280GF | 280 | 350 | 504 | NTA855-G1B | 6 | 140*152 | 14 | 38 | 206 | 3100*1050*1700 | 2950 |
| JL-300GF | 300 | 375 | 540 | NTA855-G2A | 6 | 140*152 | 14 | 38 | 206 | 3100*1100*1750 | 3000 |
| JL-320GF | 320 | 400 | 576 | NTA855-G4 | 6 | 140*152 | 14 | 38 | 205 | 3100*1150*1800 | 3100 |
| JL-320GF | 320 | 400 | 576 | QSNT-G3 | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3100 |
| JL-350GF | 350 | 437.5 | 630 | NTAA855-G7A | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3500 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose Us?
- Proven Expertise: Over 27 senior engineers ensure cutting-edge design and performance.
- Global Compliance: Meets EU Stage V and Tier 4 emission standards for eco-friendly operations.
- Durability: Reinforced steel frame and corrosion-resistant coating for harsh environments.
- OEM Partnerships: Trusted by Cummins, Perkins, and other global brands.
- 2-Year Warranty: Full coverage for mechanical and electrical components.
Packaging and Delivery
Every 220kW diesel unit is securely packaged in weatherproof crates and shipped globally via sea or air freight.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches in China and 26 overseas offices. Equipped with automated assembly lines and a dedicated R&D team, we've powered industries in 50+ countries since 1996.

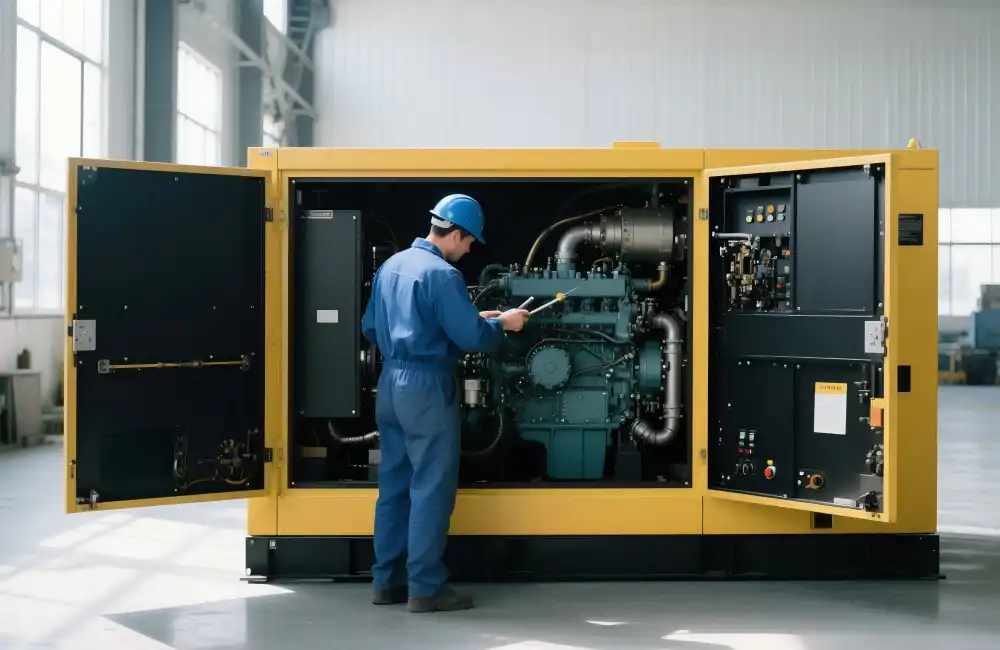

Factory After-Sales Service
Enjoy 24/7 technical support, on-site maintenance, and genuine spare parts delivery within 72 hours.
Certification
Our products hold CE, ISO9001, and ISO14001 certifications, validated through rigorous in-house testing.
Exhibitions
We showcase innovations annually at global trade fairs like PowerGen Asia and Middle East Electricity.
FAQ
Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.
Q: Can I request a customized voltage configuration?
A: Yes! Our engineers tailor solutions to your grid requirements.
Q: Do you offer financing options?
A: Flexible terms, including leasing and deferred payments, are available.
Power Your Operations with Confidence
When you choose Wuhan Jlmech's 220kW diesel unit, you invest in reliability, compliance, and long-term value. Join global clients who trust us to keep their businesses running—rain or shine.
Ready to discuss your project? Email skala@whjlmech.com today!
